1000 Gallon Foam/Water Fire Fighting Truck

Home > Products > TANKERS/TENDERS > 1000 Gallon Foam/Water Fire Fighting Truck

1000 Gallon Foam/Water Fire Fighting Truck

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Information

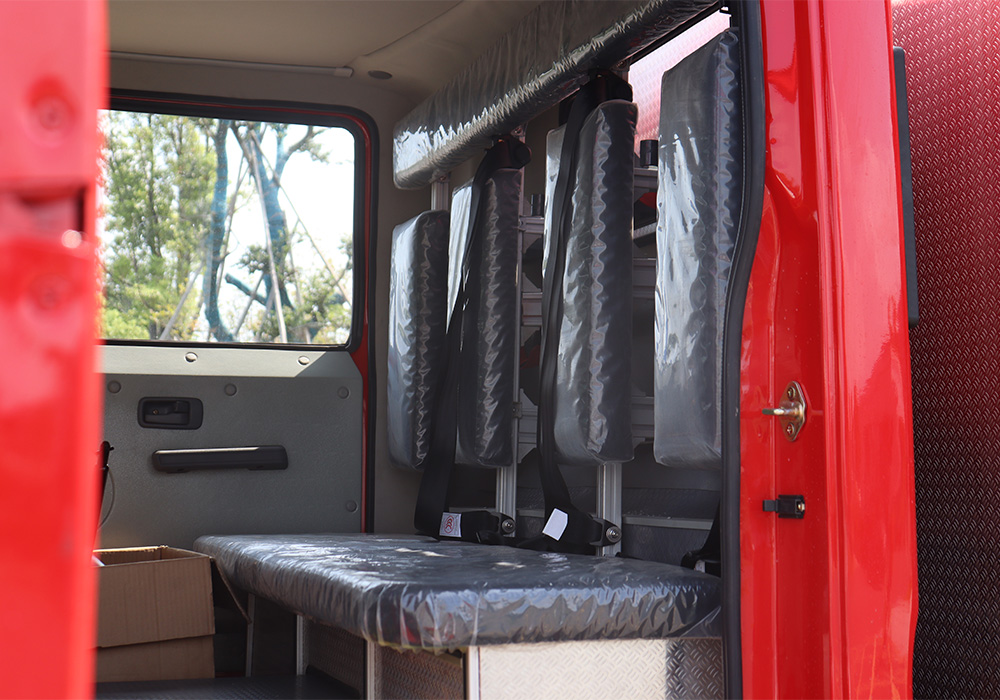

Internal Cabin: Equipped with reversing alarm buzzer, main power switch, reversing camera, monitor and two USB interfaces.Besides the apparatus in the original vehicle, reversing radar and video system are installed.

Tank Material: High quality 304 stainless steel with special anti- corrosion treatment; Welding is qualified in strict accordance with national technical standard. Vertical and horizontal swinging plates are equipped in the tank. The thickness of roof, wall, clapboard, bottom of tank are 3mm.

Power Take Off: Full power sandwich type power take-off. Ratio is 1.375. Special designed gears and bearing that it can be used 6 hours non-stop.

Fire Pump: Flow rate is 2400L/min@1.0Mpa. Suction height: is 7m. Priming time of pumping water is ≤35s. Ratio is 1.44.

Fire Monitor: Flow rate is 30L/s. Range is 55m. Rotation angle is 360°. Installing position is the roof of the vehicle.

Specifications

No.	Item	Parameters: Foam Tanker Fire Truck	Parameters: Water Tanker Fire Truck
1	Dimension: LWH	7005×2370×3070mm	7005×2370×3070mm
2	Water/Foam tank volume	Water 2500kg, Foam 1000kg	Water 3400kg
3	Fire pumps at 10 bar pressure rated flow	30L/s	30L/s
4	Fire cannon flow rate	30L/s	30L/s
5	Chassis	Isuzu QL1110ANKWY 4×2	Isuzu QL1110ANKWY 4×2
6	Wheelbase	3815mm	3815mm
7	Emission standard	Euro VI	Euro VI
8	Engine power	151kW	151kW
9	Vehicle occupants	3+3	3+3
10	Max.speed	110km/h	110km/h
